Full-size DN Hull Template

These templates will save hours of time by eliminating the lofting step (scaling up from small plans), and also eliminating most measurement.

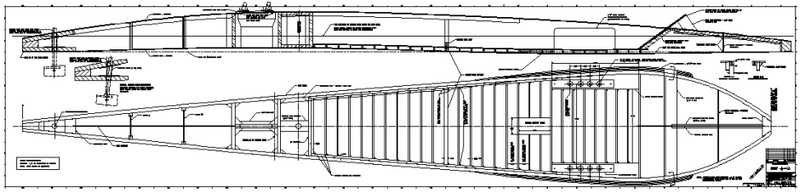

There is a side panel template, with all internal structure shown. Once you cut out the side panels, you transfer all the internal locations to the inside of the panels.

There is also a plan (top) view template that you build the hull on. You place the plan view template on a building jig (flat workbench), cover it with clear plastic, then place the side panels into position. All the lines on the inside of the side panels line up with corresponding lines on the plan view template. Looking inside the hull, you see essentially a 3-D wireframe of the internal structure. Then it's simply a matter of cutting out the internal structural parts, and gluing them into position on the lines.

This method greatly simplifies the building procedure, and almost guarantees that your new hull will meet all the current specifications. I also include a set of step-by-step building instructions with graphics to help the first time builder.

This is a very competitive design, and boats built from these templates have finished in the top ten at all International level regattas sailed in North America for over 12 years.


The cost of the template is US$60. Shipping and handling: US$15 Continental US; Europe and Canada - please contact me to determine postage.

Total cost: US$75 Continental US, $60 + shipping Canada and Europe.

Payment methods:

Paypal: If you purchase these templates I consider you a friend, I hope you agree. PayPal is my preferred payment method (my PayPal ID is "pegoodwin@yahoo.com"). If you use Paypal and select the "Friends and Family" payment method there is no service charge. If you choose not to use Friends and Family please add a $3 Paypal service charge to the payment.

Money orders are accepted and take a couple days at the bank to clear.

Checks are accepted but take five days at the bank to clear.

Paul Goodwin
39480 Lakeshore Dr.
Harrison Twp., MI
48045
USA

phone: +1-248-761-7255
email: pgoodwin-dn@cefirmbach.com


updated February 22, 2020
